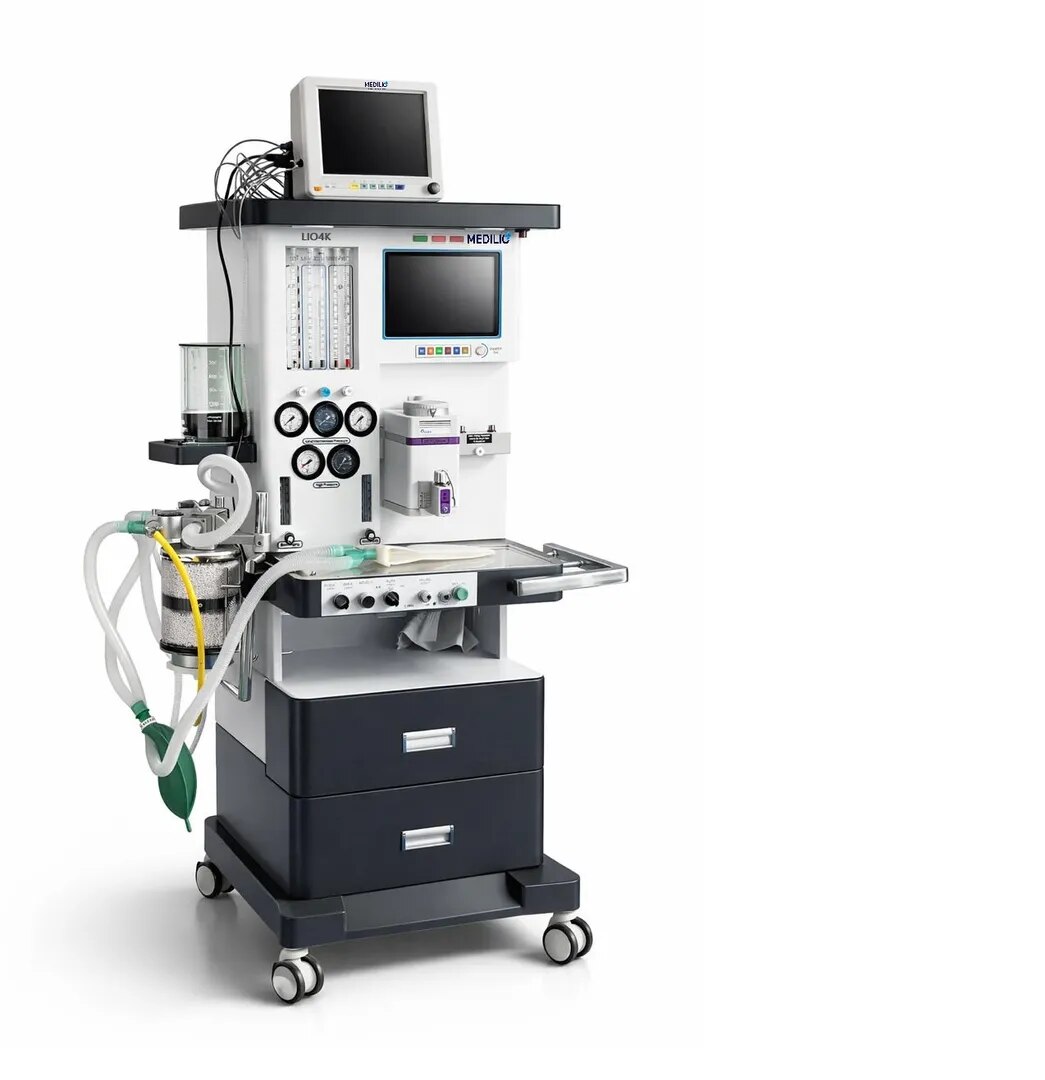

Medilio Plus WILO4000 Anesthesia Workstation

The Medilio Plus WILO4000 is a state-of-the-art anesthesia workstation designed for precision, safety, and reliability in operating rooms. Engineered with advanced ventilation technology and intelligent monitoring systems, it provides stable anesthesia delivery and supports all major surgical procedures.

Built to international standards, the AHEN-4000 ensures optimal performance for both adult and pediatric patients.

Specification Description

Model Name/Number AHEN-4000

Brand Medilio Plus

Type Anesthesia Workstation

Gas Source Oxygen (O₂), Nitrous Oxide (N₂O), Air

Display Type 7' TFT Color LCD Touch Screen

Ventilation Modes Manual / Volume Control / Pressure Control

Tidal Volume Range 20 – 1500 ml

Respiratory Rate 4 – 60 BPM

I:E Ratio Adjustable (Default 1:2)

PEEP Range 0 – 20 cmH₂O

Pressure Limit 10 – 80 cmH₂O

Flow Meter Type Dual Rotameter Tubes for O₂ & N₂O

Flow Meter Range 0.1 – 10 L/min

Non-Return & Pressure Relief Valve Integrated safety system prevents reverse flow and auto releases excess pressure

Vaporizer Compatibility Isoflurane, Sevoflurane, Halothane (Selectatec compatible)

Breathing System Circle absorber with CO₂ canister

Oxygen Flush 35 – 75 L/min

Monitor Shelf Yes – built-in stainless-steel shelf for monitor placement

Writing Surface / Work Tray Pull-out stainless-steel tray for documentation and accessories

Alarms Visual and audible for pressure, volume, and system faults

Lighting LED illuminated work area

Battery Backup Up to 90 minutes

Power Supply 220V AC ±10%, 50/60Hz

Weight Approx. 65–70 kg

Dimensions (HxWxD) 1300 × 600 × 600 mm

Mobility Four anti-static lockable castor wheels

Usage/Application Hospitals, Operation Theatres, Surgical Centers, ICUs

Country of Origin Made in India
