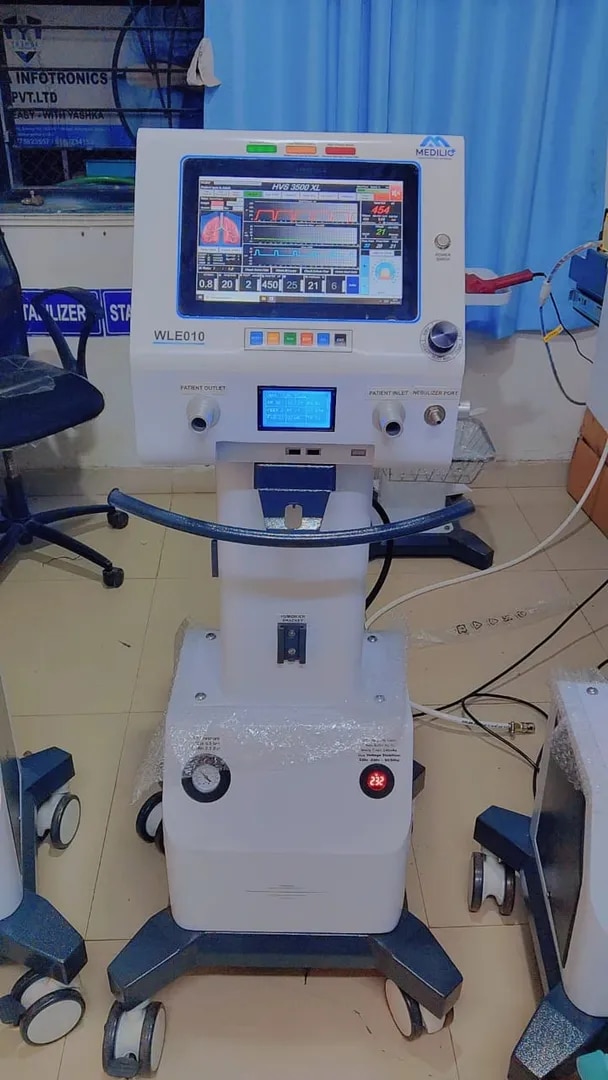

Medilio Plus HVS 3500 XL ICU Ventilator (Model: WLE010)

The Medilio Plus HVS 3500 XL is a next-generation ICU-grade ventilator designed for both invasive and non-invasive ventilation. It offers advanced modes of respiratory support, high-resolution monitoring, and intelligent alarm systems for superior patient care.

Engineered for use in hospitals, ICUs, and emergency setups, it ensures accurate ventilation delivery for adult and pediatric patients.

Tidal Volume (VT) 50 – 2000 ml

Respiratory Rate (RR) 4 – 80 BPM

I:E Ratio Adjustable (1:1 to 1:3)

PEEP 0 – 20 cmH₂O

Pressure Limit 10 – 80 cmH₂O

FiO₂ Range 21% – 100%

Flow Rate Up to 120 L/min

Trigger Sensitivity Flow / Pressure adjustable

Ventilation Modes Volume Control (VCV), Pressure Control (PCV), SIMV, CPAP, BiPAP, PSV, PRVC, Manual, Standby

Display Type 15" TFT LCD Color Touch Screen

Waveforms Displayed Pressure-Time, Flow-Time, Volume-Time, Loops

Data Display Real-time numerical and graphical patient parameters

⚡ Technical Specifications

Parameter Specification

Model WLE010

Brand Medilio Plus

Power Supply 220V AC ±10%, 50/60Hz

Battery Backup Up to 120 minutes

Oxygen Source Central pipeline or O₂ cylinder

Air Source Built-in air compressor

Dimensions (H×W×D) 1350 × 600 × 500 mm

Weight Approx. 45–50 kg

Noise Level ≤ 45 dB

Usage Adult & Pediatric Patients

Country of Origin Made in India
